- Hopper loaders are used on processing machines with a low processing capacity.
- Furthermore, they can be used to transfer many materials for both gravimetric and volumetric dosing.
- Hopper loaders are part of most drying systems.
- They are usually so large that they contain around four times the dryer’s processing capacity per hour.
At first glance, they look the same, but there are certain basic functions that you should pay attention to to ensure efficient drying and processing convenience.
ONE PHASE HOPPER LOADERS VLM
- VLM single-phase hopper loaders transport plastic granules to processing machines etc …
- Single-phase hopper loaders are equipped with a built-in extraction unit.
- Suction capacity up to 600 kg / hour material, at a distance of 30 meters.
- Easily program and control the machine with a keyboard.
TECHNICAL SPECIFICATIONS:
- 900 W two-stage fan (model VLM25 equipped with a brushless brush of 1800 W).
- Automatic filter cleaning with compressed air.
- Inspection door with a stainless steel filter for venting.
- Control with a keyboard and a digital display that shows the operating status and alarms.
- A built-in double cover divides the fan motor and guarantees better operation.
- Aluminum mounting ring for a 360 ° installation.

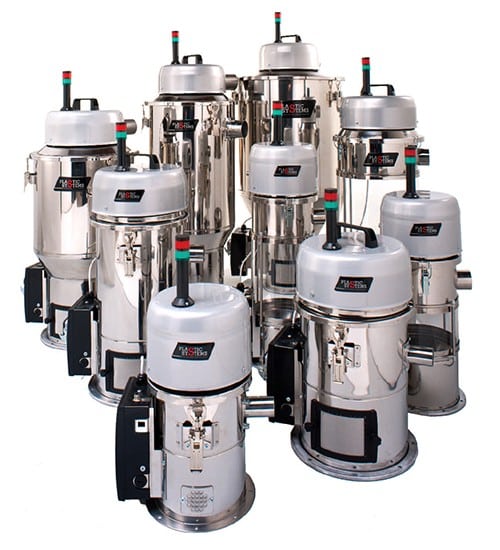

LDM-SERIES MATERIAL RECEIVERS

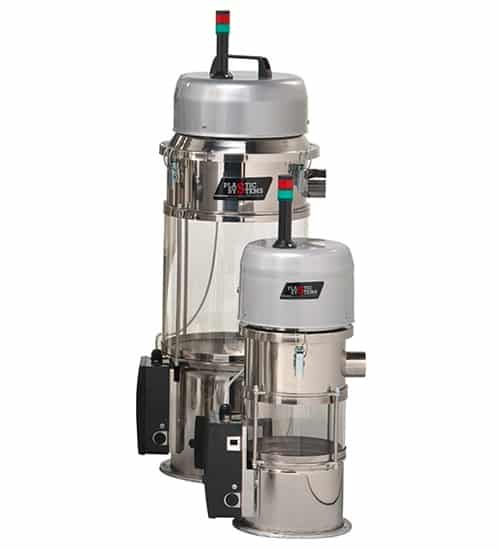

The LDM series of material receivers is made of stainless steel and the LDX series with a central pyrex glass body.
Available application with three-phase hopper loader. 8 models from 2 dm3 to 200dm3.
TECHNICAL SPECIFICATIONS:
• Stainless steel structure.
• Hinged cover.
• High depression effect.
• Automatic cleaning of the filter.
• Ventilation opening for metal filter.
MATERIAL RECEIVERS TMM – TMX
The TMM Series Material Receivers are made of stainless steel against which the TMX series has a central pyrex grass body.
They can be used with PD-series three-phase hopper chargers.
There are 8 models from 2 dm3 to 100dm3.

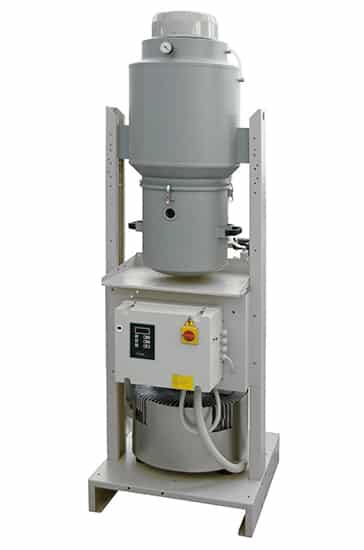

THREE-PHASE PD SERIES HOPPER-LOADERS
The suction units of the PD series with capacities from 1.1 to 15 kW are used in pneumatic transport systems for throughput up to 3000 kg / h and distances up to 150 m.
POWDER FEEDerS

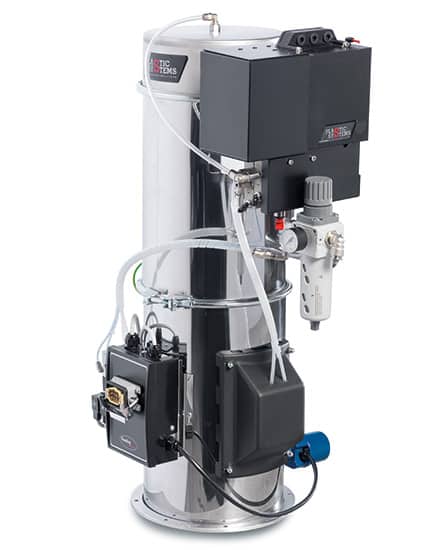

The powder feeders from the VLP series are suitable for the pneumatic transport of powdered plastic materials.
They can also be used for the transportation of food, pharmaceutical and chemical products that require high hygiene standards.
Furthermore, powder feeders are ideal for free-flowing powders with:
- a particle size between 40-200 μm
- bulk density from 0.35 to 1.8 kg / dm3.

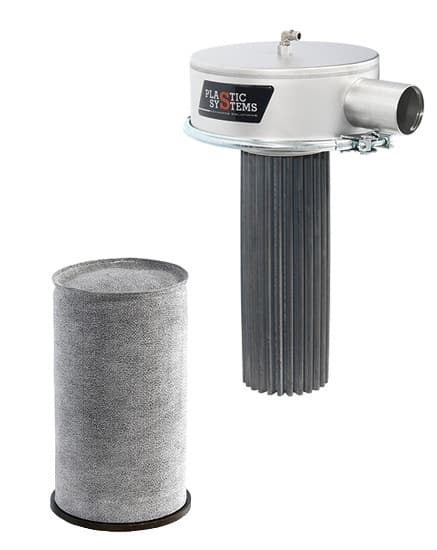

They can also be used for powders with lower particle sizes by using special sintered filters.
